| Easy Operation Color Colorimeter | High Precise and High Stable Portable Colorimeter |
| Product Instroduction |

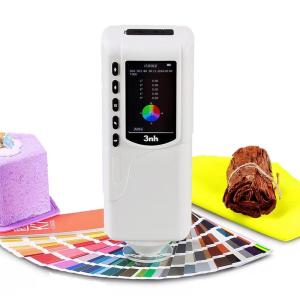

| Certificates: ISO9001:2008; CE; FCC; ROHS; TUV. NR60CP multiparameter colorimeters manufacturers with 8mm/4mm aperture has the advantages of high accuracy, powerful function and precise measurement which are warmly welcomed by customers.
NR60CP colorimeter is a multifunctional colorimeter with high quality and competitive price. 3nh insists on independent research whose technology innovation is unique in color management field.
|
| Specifications |
| | Illuminating/Viewing Geometry: | 8°/ d | | Light Source: | LED Light | | Sensor: | silicon photodiode array | | Measuring aperture: | Φ8mmflat aperture; Φ4mmtip aperture | | Color Space: | CI E L AB,XYZ,LCh,CI E RGB,CI E LUV | | Color Difference Formula: | ΔE* ab, ΔE( h) , ΔE* uv,ΔE* 94, ΔE*cmc ( 2: 1) , ΔE*cmc ( 1: 1) , ΔE* 00 | | Other Chromaticity Data: | WI ( E313,CI E, AATCC,Hunt er ),YI ( D1925,313),Color Fastness, Staining Fastness, J PC79,BFD( 1. 5: 1),FMCI I | | Observer: | CI E 10° | | Illuminant: | D65,A,C,D50,F2,F6,F7,F8,F10,F11,F12 | | Display Data: | Colorimetric Value, Color Difference Value/Graph, PASS/FAIL Result, Color Offset, | | Measuring Time: | 0. 4s | | Repeatability: | ΔE* ab 0. 03 (Average of 30 measurements of standard white plate within 5s) | | Errors between each instrument: | within Delta E*ab 0.2 | | Dimension: | 205*67*80mm | | Weight: | 500g | | Battery: | rechargeable lithium-ion battery 3. 7V @ 3200mAh | | Lamp Life: | 5 years, more than 1.6 million measurements | | Screen: | TFT 2.8 inch(16: 9) | | Interface: | USB/ RS- 232 | | Storage: | 100 Standards, 20000 Samples | | Operating Temperature: | 0~40℃(32~104°F) | | Storage temperature: | -20~50℃(-4~122°F) | | PC software: | CQCS3 software | | Optional accessory: | miniature thermal printer, powder test box | |
| Features |
| 1. Switchable 8mm and 4mm measuring apertures, easy to measure concave surface.
2. Higher measurement stability and accuracy, Delta E ab<0.03.
3. More color spaces, various color indexes, extensive applicability.
4. Double locating: illuminating locating and cross locating
5. Configured with high-capacity rechargeable Li-ion battery
6. Built-in white plate parameters and physical white calibration board, easy to operate;
7. New integrating sphere optical path design, more stable measurement;
8. Measurement data can pass national metrology authentication. |
| Application |
| 3nh colorimeter spectrophotometers are widely used to compare color difference in plastic, electronic, painting, coating, ink, texile, garment, printing, dyeing, food, medical, cosmetic industries and institutes, schools and laboratoris.
|
| Company Information |
 | Shenzhen 3nh Technology Co., Ltd. is a high-tech enterprise. We research, develop, produce and market photoelectric detection products in photoelectric detection technology field and color management field. The parameters of test results are integrating with international standards. Our 3nh brand colorimeter spectrophotometer products are exported around the world. We can provide customization service which has been well received by customers. |
| Product Details |
| |
| Colorimeter Spectrophotometer Certifications |
| |
| Warranty |
| All our products have one year warranty from the purchase date. If it has something wrong during warranty, you can send it back to us. The buyer pays for the returning shipping cost and we will pay for the sending shipping cost. |
| |
| Related Knowledge about Spectrophotometer |
| Color Space
CIE LAB
-L(Lightness)-0 is black,100 is white
-a(Red-Green)-positive values are red; negative values are green and 0 is neutral
-b(Blue-Yellow)-positive values are yellow;negative values are blue abd 0 is neutral
CIE LCH
L: Lightness,value is the same in each scale C:Chroma H:Hue Angle
dE Total Color difference
Delta-E is a measurement used to indicate how much a color deviates from an accepted standards.The higher the dE, the more inaccurate the color. |
